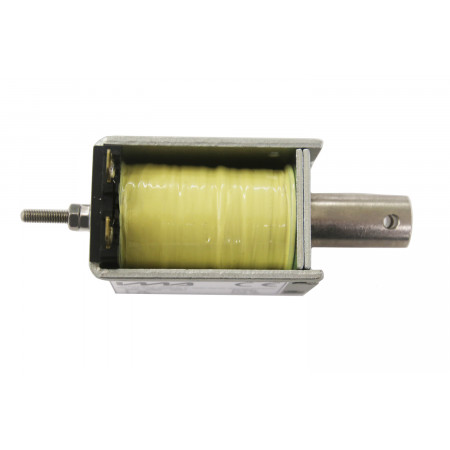

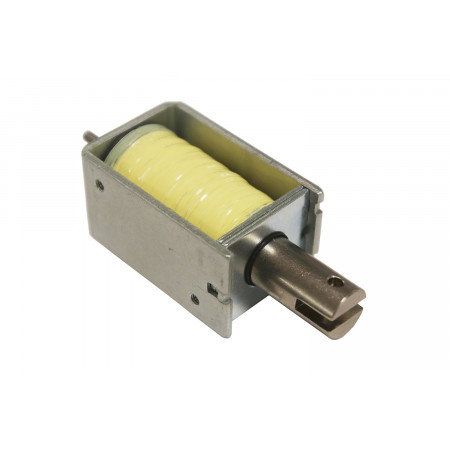

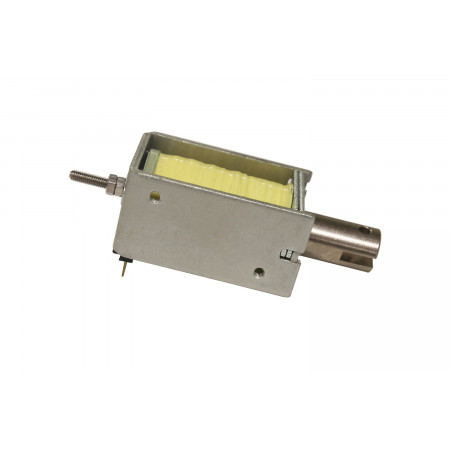

Activation electromagnets ER60-20/C


Conventional shipping
3-5 days (outside Europe 5-7 days)
Fast delivery!
24 / 48 h
1 ud. €71.07/ud.
5 uds. €66.63/ud.
10 uds. €62.19/ud.

Para 1 uds. el precio es €71.07

€71.07
Tax included

Quantity
Currently available, 2 weeks of manufacture

Product Details

Market factor
ED 100 %
Nominal voltage
24 V dc
Weight (g)
650

Description

Features:

Protection rate: IP00

Insulation class: B (130ºC)

Cycle duration: 5 minutes

Standard stroke "s": 20mm

Temperature rise: "DV31": 70ºC

Work: pull/push

Incorporated return spring: YES

Duty-cycle ED(%) 100 40 25 15 5
Abs. Power at 20ºC (W) 18 45 70 110 280
Minimum force (N) 9.2 16.7 21.5 28.5 50
Max time under voltage(s) ? 120 75 45 15
Plunger weight (g)   117
Solenoid weight (g)   650

Duty-cycle ED(%) Standard voltages Under demand voltages
VDC VAC VDC VAC
6 12 24 48 100 125 205 110 230 Min Max Min Max
100% X O O O O O O O O 7 230 48 230
40% X O O O O O O X O 11 230 125 230
25% X X O O O O O X O 13 230 200 230
15% X X O O O O O X X 16 230 X X
5% X X O O O O O X X 24 230 X X

Layout::    O= Available;     X= Unavailable

Force stroke curve:

er60-20c

Solenoid under voltage:

plano er60-20c

* Under request, it can be supplied in any other dimension.

Remarks:

  1. Voltage under demand: They can be manufactured at any voltage between the maximum and minimum voltage values shown in the chart.
  2. To feed in alterning current the solenoid will have a rectifier incorporated in the coil.
  3. The duty cycles described in the chart are standard, they can be manufactured in any intermediate cycle.
  4. If any variation from the original is needed, please ask us.
  5. The terminals can be changed by leads.
  6. Earthing is recommended if the metallic parts are accessible.

Ordering code: ER60-20/C --V ED---% - Mounting position - Spring Example:

  • Standard voltage:24Vdc Duty cycle: ED100%: Mounting position A: With spring : ER60-20/C 24Vdc ED100% A RS
  • Standard voltage:48Vdc Duty cycle: ED15%: Mounting position C: Without spring : ER60-20/C 48Vdc ED15% C RN
electroiman er60-20c

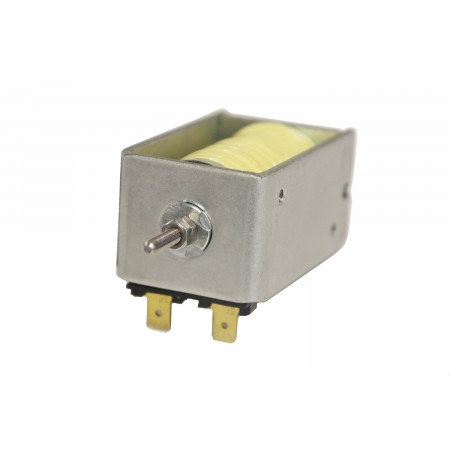

Model with terminals                                                               Model with wires
