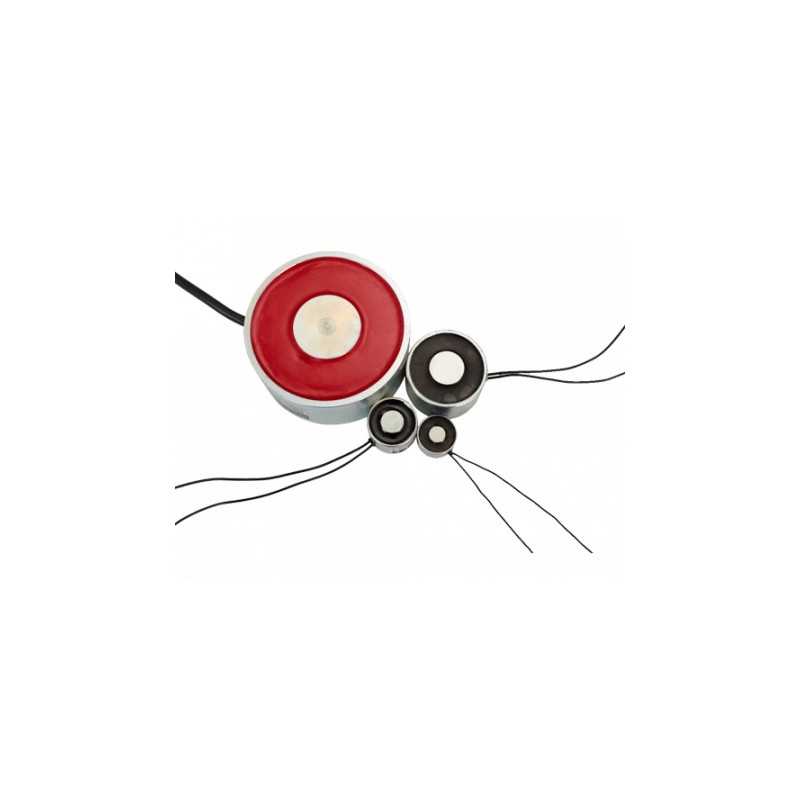

    DC electromagnet Neodymium Quality IMAVP40/Nd

    DC Electromagnet IMAVP40/ND

    IMAVP40/ND

    In Stock
    Reference: ELEE01036

    DC electromagnet Neodymium Quality IMAVP40/ND


    Conventional shipping
    3-5 days (outside Europe 5-7 days)
    Fast delivery!
    24 / 48 h
    1 ud. €56.00/ud.
    5 uds. €52.50/ud.
    10 uds. €49.00/ud.

    Para 1 uds. el precio es €56.00

    €56.00
    Tax included

    Quantity
    In Stock
    Request a Budget

    Product Details

    Market factor
    ED 15 %
    Nominal voltage
    24 V dc
    Weight (g)
    24

    Description

    Features:

    Degree of protection IP65
    Thermal Class B (130)
    Rated voltage 24V DC

    Normalised Duty cycle: see table
    For other voltages, ED or sizes, please consult us.

    A permanentelectric electromagnet is a device aimed at transforming electrical energy into mechanical energy. Direct current electromagnet are produced in ferric alloys and operate at 24 V. Their functioning is very simple: their magnetic field is concentrated in iron armature, thus permiting any type of pick-up. When it is connectes to the current, this magnetic field is eliminated, allowing the charge to release. When the tension increases, the magnet recovers its initial strenght.

    Supply possibilities on request:

    Standard terminals included free-of-charge, for all sizes.

    IMAVP20/ND,IMAVP30/ND, IMAVP40/ND: 1×0,25mm2
    IMAVP50/ND, IMAVP65/ND, IMAVP100/ND: 1×0,5mm2
    IMAVP150/ND: 2×0,75mm2

    The following table gives the holding force values (Fm) according to the air gap (δL) and measured under the following conditions:

    • Dc supply (DC).
    • Flat holding piece (3μ roughness) in AºSt37, the thickness of which is indicated in the table and dimensions to be greater than the magnetic face of the electromagnet.
    • 35 ° C ambient temperature.
    • Coil stabilized at its working temperature.

    Under any other conditions, the magnetic force (Fm) may decrease.

    CodeP (W)ED (%)e (mm)Air gap (mm) δL
    00.20.5

    Holding force values (Fm)

    IMAVP20/ND11.62512271.7
    33971.7
    103971.7
    IMAVP30/ND25201463422
    31817422
    101817422
    IMAVP40/ND42151513623
    32058938
    102708938
    IMAVP50/ND48151604134
    330420095
    10607225110
    IMAVP65/ND80151705040
    3374340260
    101220750400
    IMAVP100/ND75251836149
    3421365338
    1022541254686
    IMAVP150/ND77401784632
    3615475401
    10220514901100

    e (mm): thickness of the piece to hold

    Important: the clamp screw must not exceed the dimension D.


    * On request, can be manufactured with internal protection to prevent overheating in the coil due to non-compliance with operating times determined by the driving factors, this overheating can demagnetize the internal magnets or destroy the coil altering the correct operation of the electromagnet.

    Remarks:

    Power mode to take off the piece:
    Voltage: 24Vdc
    Polarization: Red wire + VDC / black Cable -VDC
    Order code: IMAVP–/ND –V ED–%

    Rated voltage: 24V dc; Load factor

    • Example1: IMAVP50/ND ; Rated voltage: 24 Vdc; Load factor: ED15%; Ref: IMAVP50/ND 24Vdc ED15%
    • Ejxample2: IMAVP50/ND with protection; Rated voltage: 24 Vdc; Load factor: ED15%; Ref: IMAVP50/ND_WP 24Vdc ED15%

    With a remnant magnetism voltage is 5% of the value of the holding force (Fm).

    Grounding is recommended if the metallic parts are accessible.

    When used for lifting and handling of loads a minimum safety factor of 3 should be used, the weight of the load must be at least one third of the holding force.

    3D View
    Clicking on the image , hold and turn.
